- Designed for bidirectional input current from -31 A to 31 A (though the robust sensor IC can tolerate 100 ms transient current spikes up to 100 A).
- Conductive path internal resistance is typically 0.6 mΩ, and the PCB is made with 2-oz copper, so very little power is lost in the board.
- Use of a Hall effect sensor means the IC is able to electrically isolate the current path from the sensor’s electronics (for applications up to 100 V), which allows the sensor to be inserted anywhere along the current path and to be used in applications that require electrical isolation.
- 100 kHz bandwith.
- Good accuracy and reliability: factory calibration results in a typical total output error of ±4% at room temperature, the output offset voltage is extremely stable, and the sensor has zero magnetic hysteresis.
- Overcurrent FAULT output latches low when current magnitude exceeds 31 A.
- Operating temperature range of -40°C to 125°C.
This sensor is very similar to our original ACS711 -25 to +25 A Current Sensor Carrier, but uses a smaller “EX” package that has a larger optimized sensing range and reduced internal resistance. The board size, pinout, and hole locations are all unchanged, so it can generally be used as a drop-in replacement for our ACS711 carriers with “LC” packages.
Using the sensor
Electrical connections
 |

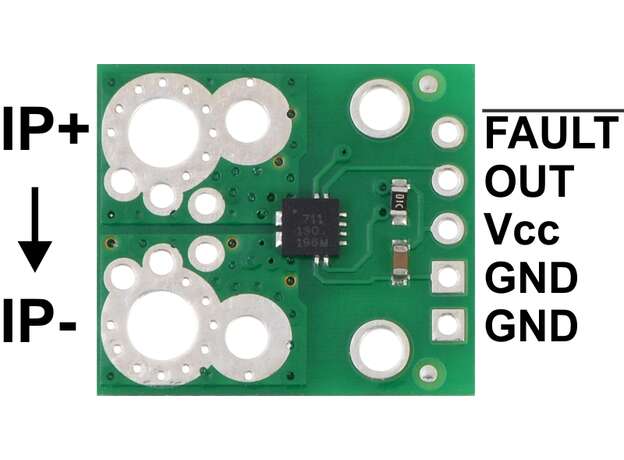

| ACS711EX current sensor carrier connection and mounting dimension diagram. |
|---|
|
 |
| ACS711 current sensor carrier (LC package version) with solderless ring terminal connectors (not included). |
|---|
|
Warning: This product is intended for use below 30 V. Working with higher voltages can be extremely dangerous and should only be attempted by qualified individuals with appropriate equipment and protective gear.
Mounting information
Included components
 |

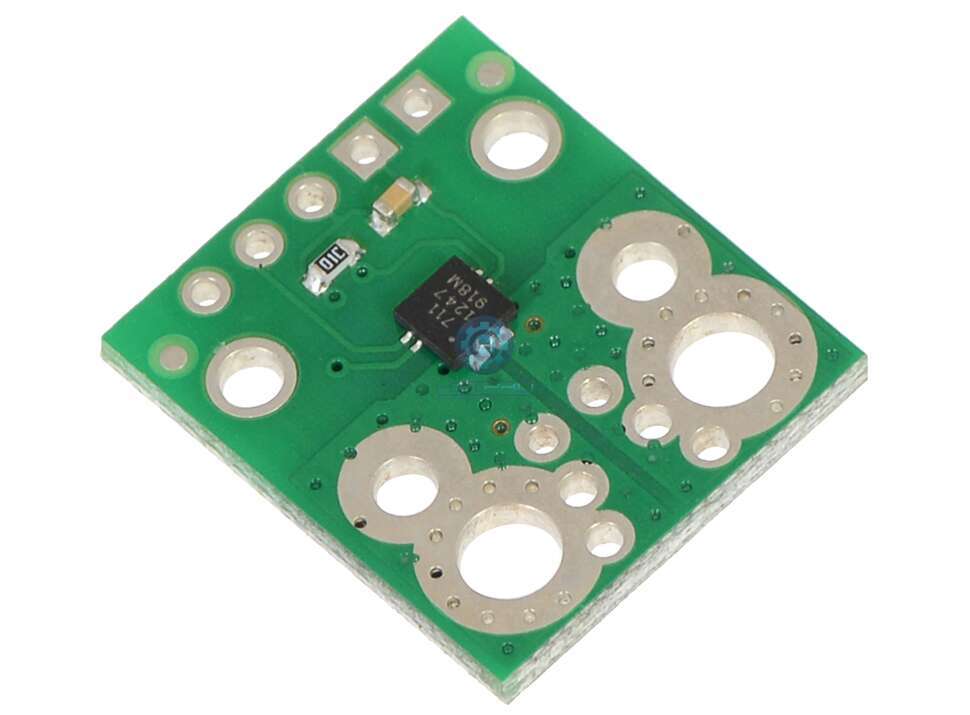

| ACS711EX current sensor carrier with included 5 × 1 0.1″ header pins. |
|---|
Schematic diagram
 |
| ACS711 current sensor carrier schematic diagram. |
|---|
