Track Set

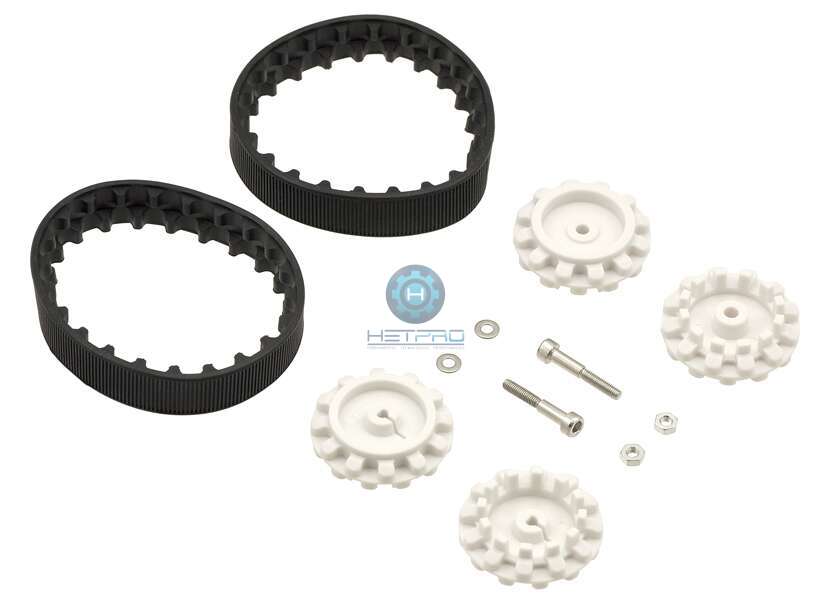

Este incluye un par de pistas de silicona de 22 dientes , dos ruedas dentadas que miden 1.38 " ( 35 mm ) de diámetro, y dos ruedas dentadas locas a juego junto con los accesorios de montaje . Los piñones de accionamiento están diseñados para trabajar con 3mm D- ejes , tales como los de nuestros motorreductores de metal micro y 15.5D motorreductores mm de metal.

ESPECIFICACIONES

• Dos pistas de silicon.

• Dos ruedas dentadas locas.

• Dos ruedas dentadas conductoras.



CARACTERISTICAS

• Dimensiones (rueda): 35(diámetro) x 21.58mm.

• Peso (Track Set): 44 g.

• Marca: Pololu.

• Cantidad: 14 piezas.



ENLACES DE INTERES

• Hoja de datos: N/A.
• Página del fabricante: Pololu
• Tutorial: N/A.
• Software: N/A.



COMPATIBILIDAD

Track Set ideal para tu robot que requiera un buen desplazamiento, por ejemplo para los sistemas un robot mini-zumo y lo puedas controlar mediante tu tarjeta programable.

MAS INFORMACIÓN

Informacion adicional : https://www.pololu.com/product/1415

The flexible one-piece silicone tracks are available in two lengths, with either 22 teeth or 30 teeth that are designed to mesh with the drive and idler sprockets. The 22T set, with an overall length under 90 mm, is short enough to be used as the drive system for a mini-sumo robot (for example, our Zumo chassis and Zumo Robot for Arduino).

The drive sprockets are designed to press-fit securely on the output shafts of our micro metal gearmotors and 15.5D mm metal gearmotors. These gearmotors are intended to be mounted onto the side of the hub with the protruding teeth. The output shaft will slide into the socket easily at first but will achieve a snug fit when pressed through to the other edge of the hub.

The output shafts on the Solarbotics metal gear motors will also fit these sprockets, but because they are shorter they will have to be mounted onto the other side of the sprocket where the fit is tighter. These sprockets will also work in this orientation on Pololu plastic gearmotors with 3mm D-shaft outputs.
Our extended micro metal gearmotor bracket is specifically designed to work with these hubs. Please note that the non-extended version of our mounting bracket (product #989) will not work well with these hubs.
