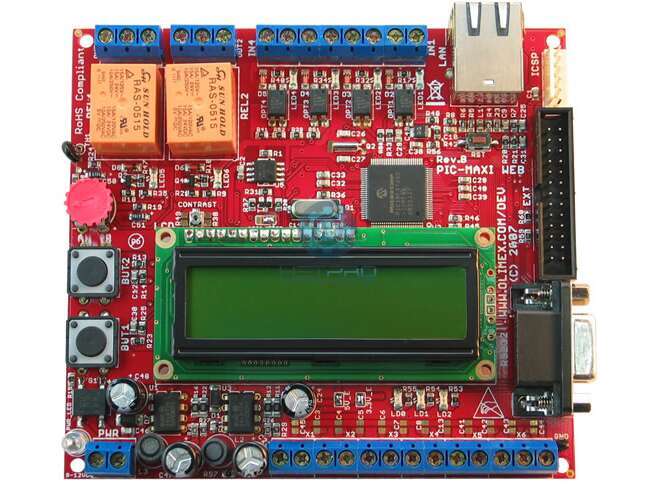

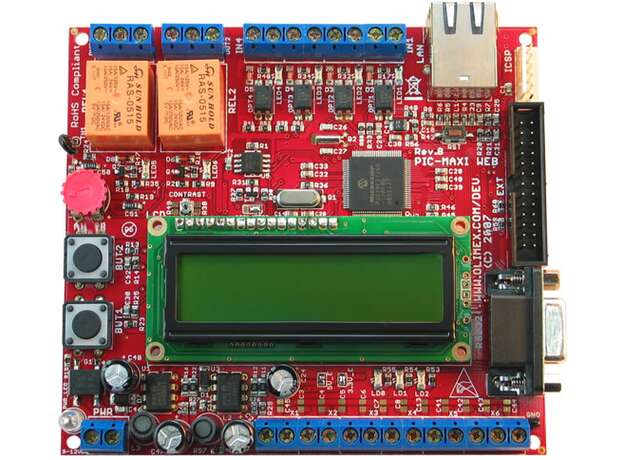

Esta tarjeta es ideal para desarrollo de aplicaciones con conectividad Ethernet. Tiene todo lo que normalmente se requiere para este proposito. Incluye relevadores que puedes controlar desde una Web, un LCD que puede mostrar mensajes como entradas anlógic
ESPECIFICACIONES
- PIC18F97J60 microcontroller with embedded Ethernet MAC and PHY and 128KB Flash programming space
- 1Mbit on board serial flash for web pages storage
- ICSP/ICD connector for programming and debugging with PIC-ICD2 and PIC-ICD2-POCKET.
- Temperature sensor
- Trimmer potentiometer connected to analogue input
- Two relays 10A/250VAC
- Four optoisolated digital inputs
- Twelve analogue inputs on terminal block
- Two buttons
- LCD16x2 with backlight
- RS232 interface
- Ethernet interface
- Complete web server and TCP-IP stack support as per Microchip's open source TCP-IP stack
- Terminal block for power supply works with 9-25 VDC power supply
- Extension header to connect to other boards
- Dimensions 120x108 mm (4.72x4.25")
ENLACES DE INTERES
DOCUMENTS
- PIC-MAXI-WEB.pdf - User's manual
- Understanding PIC WEB boards and Microchip TCP-IP stack tutorial
- Microchip TCP/IP AN833 - please read carefully, the TCP/IP stack is described
- PIC-MAXI-WEB software setup provided by customer of ours Tom Nguyen
SOFTWARE
- Example based on Microchip's stack v5.42 refer to the Olimex License Agreement.pdf and Read Me.txt inside
- Microchip-5.31 stack free Microchip's TCP-IP stack tuned for PIC-MAXI-WEB with DHCP disabled and IP set to 192.168.0.163, all boards are shipped with pre-loaded TCP-IP stack
- Production test binaries in zip format (the initial program the board was programmed with)
- There is a known issue with C18 V3.37.01 & TCIP/IP V5.31 (or TCIP/IP V5.00). The fastest workaround is to use the previous C18 (v3.34) until the next C18 version is released. Another work around is to use thisp18f97j60.h
