MOTOR DC

Mover el mouse sobre la imagen para agrandar

$107.00
Precio con puntos: 129 puntos
Puntos de recompensa: 5 puntos
10 Artículo(s)
Descuentos de mayoreo:
Cantidad 5+
Precio $101.65
+
MOTB2568-GC_84
  • DESCRIPTION

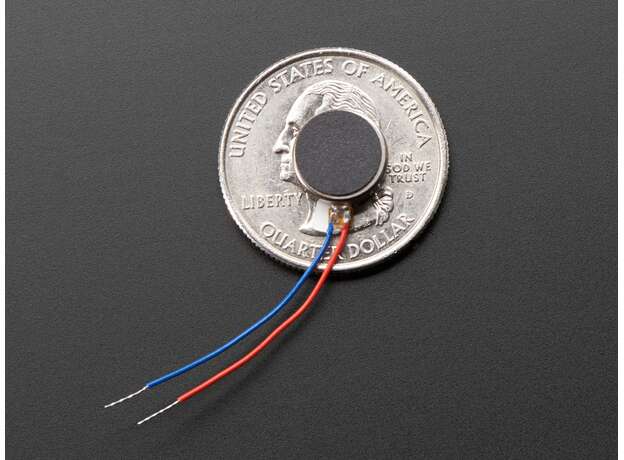

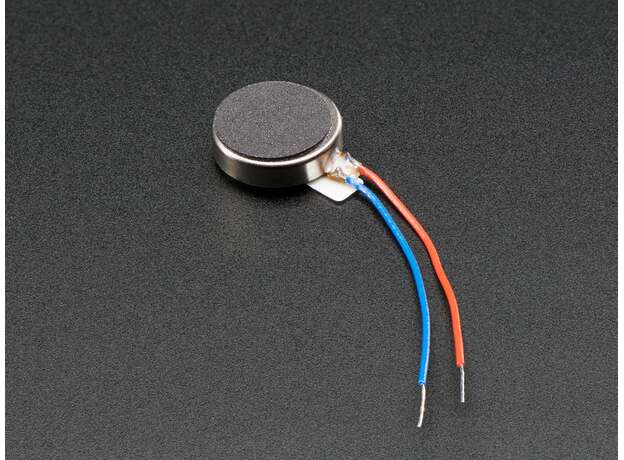

    *BZZZZZZZZZZ* Feel that? That's your little buzzing motor, and for any haptic feedback project you'll want to pick up a few of them. These vibe motors are tiny discs, completely sealed up so they're easy to use and embed.

    Two wires are used to control/power the vibe. Simply provide power from a battery or microcontroller pin (red is positive, blue is negative) and it will buzz away. Works from 2V up to 5V, higher voltages result in more current draw but also a stronger vibration.

    If you want to reduce the current draw/strength (for example, to control it directly from an Arduino pin) try putting a resistor (100 to 1000 ohms) in series. For full power control, a small PN2222 transistor can control a motor easily, some experimentation may be required!

    Vibrating Mini Motor Disc (6:47)

  • TECHNICAL DETAILS

    • Dimension: 10mm diameter, 2.7mm thick
    • Voltage: 2V - 5V
    • 5V current draw: 100mA, 4V current draw: 80mA, 3V current draw: 60mA, 2V current draw: 40mA
    • 11000 RPM at 5V
    • Weight: 0.9 gram
