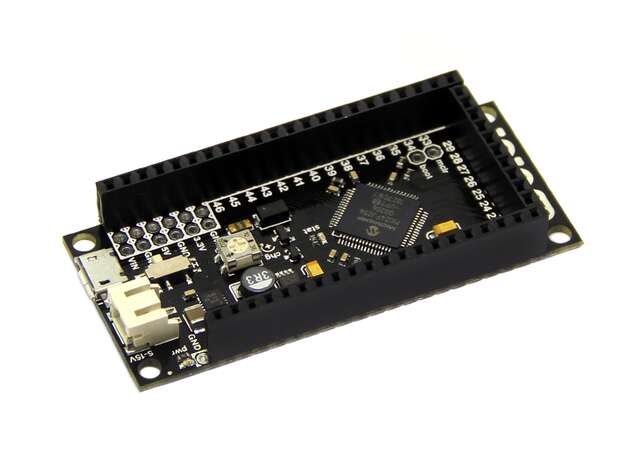

IOIO OTG para Android
IOIO OTG para Android es una tarjeta que permite hacer interfaz rápida y fácilmente con los circuitos electrónicos de un dispositivo Android o una PC. Existen distintas maneras de conectar a través de USB o Bluetooth y se puede alimentar de dos maneras con un conector a voltaje 5-15V o mediante USB.
- Conexión mediante USB o Bluetooth.
- Se puede conectar los circuitos a cualquiera de los 46 pins E/S disponibles en el IOIO-OTG.
- Alimentación de 5-15V o mediante USB.
- Incluye cables y pines para soldar.
- Distintas E/S compatibles las cuales están marcadas en la tarjeta.
- Dimensiones: 72.05x30.87x07.30 mm.
- Peso: 33 g.
- Marca: Seedstudio.
- Cantidad: 6 piezas.
ENLACES DE INTERES
Ideal para cualquier actividad que quieras comunicar con tu smartphone con sistema Android y tu PC.
- Connect the IOIO-OTG to the Android / PC using USB or Bluetooth.
- Power the IOIO-OTG (not required if operating in USB device mode, see below).
- Connect your circuits to any of the 46 I/O pins available on the IOIO-OTG. You can power your circuits off of the IOIO-OTG too.
- Write a Java program to control the I/O pins, using a high-level API using the provided libraries.
- By supplying 5V-15V to its JST connector. Do not exceed 10V if using long wires between the power supply and the IOIO-OTG or you might damage the board. The IOIO-OTG has an on-board 5V switching regulator, capable of sourcing up to 3A continuous. Your power supply has to be capable of sourcing sufficient current for your application. Keep in mind that when connected to an Android device with the IOIO acting as a USB host, the IOIO will charge the Android, which may consume up to 500mA @ 5V. You can limit the charging current somewhat using the trim-pot marked “CHG” on the board.
- Over USB, whenever the IOIO is acting as a USB device. When working in this mode, make sure that the total current draw of your circuit does not exceed 500mA. Otherwise, it is perfectly OK to connect an external power supply, as described above, in addition to acting as a USB device. In this mode, the IOIO will only draw current from the external supply.
- Connecting to Android, IOIO acting as a USB host. Connect the included USB-OTG cable to the IOIO, then use a standard USB cable to connect the Android device. For working with older Android devices (down to Android V1.5!), make sure to enable USB debugging on the Android. In this mode, the IOIO charges the Android.
- Connecting to Android over Bluetooth. Plug the USB-OTG cable into the IOIO and connect a standard Bluetooth dongle to its other end. Go to the Bluetooth settings on your Android, find the IOIO and pair with it.
- Connecting to Android, IOIO acting as a USB device. This is only supported by newer Android devices, which have the capability to act as a USB host. Connect a USB-OTG cable to the Android device, and a standard USB cable to the IOIO. In this mode, the Android powers the IOIO.
- Connecting to PC, IOIO acting as a USB device. Connect the IOIO to the PC using a standard USB cable. In this mode, the PC powers the IOIO.
- The IOIO supports a wide range of commonly used hardware interfaces, all of which can be use concurrently:
- 46 GPIO pins (digital input / output). Internal pull-ups / pull-downs / open drain mode are supported on all pins. 21 of which are 5V-tolerant.
- 16 analog inputs (use on designated pins).
- 9 PWM outputs (use on any pin marked “P”).
- 3 UART buses (use on any pin marked “P”).
- 3 I²C buses (use on designated pins).
- 3 SPI buses (use on any pin marked “P”).
- 6 pulse input channels for measuring pulse width and frequency - 3 single-precision + 3-double precision (use on any pin marked “P”).
- 16 capacitive sensing inputs (use on analog pins).
- Precision motor control - up to 9 steppers / servos / DC motors and digital outputs with precise timing, pulse counts and synchronization (coming soon with a firmware upgrade).
