Pololu, 2753, Pololu DRV8835 Dual Motor Driver Kit for Raspberry Pi

Precio

Precio de lista: $561.00
$496.00
Ahorras!: $65.00 (12%) Descuento 12%
Precio con puntos: 596 puntos
Puntos de recompensa: 15 puntos
PLKR2753

UT: GC44 , UB: -

2 disponibles
+
:
Cantidad 5+ 10+
Precio $535.00 $535.00

Este controlador hace que sea fácil de controlar un par de motores bidireccional, brushed con una Raspberry Pi Modelo B +, modelo A +, o Pi 2 Modelo B o Pi 3 Modelo B. La tarjeta de expansión cuenta con un chip de Texas Instruments DRV8835, permite operar de 1,5V a 11V y hace que sea especialmente adecuado para el accionamiento de los motores pequeños, de bajo voltaje. Puede entregar 1,2 A por canal y tolerar corrientes de pico de hasta 1,5 A por canal durante unos segundos, y los canales puede estar opcionalmente configurado para funcionar en paralelo para proporcionar el doble de la corriente a un solo motor.

ESPECIFICACIONES

  • Frecuencia máxima PWM: 250 kHz.
  • Corriente de salida por canal: 1.2A.
  • Voltaje de alimentación: 1.5-11V.
  • Canales de motor: 2.
  • Controlador: DRV8835.

CARACTERISTICAS

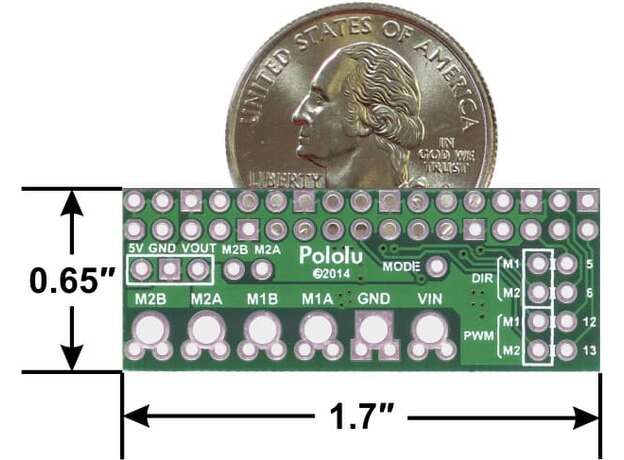

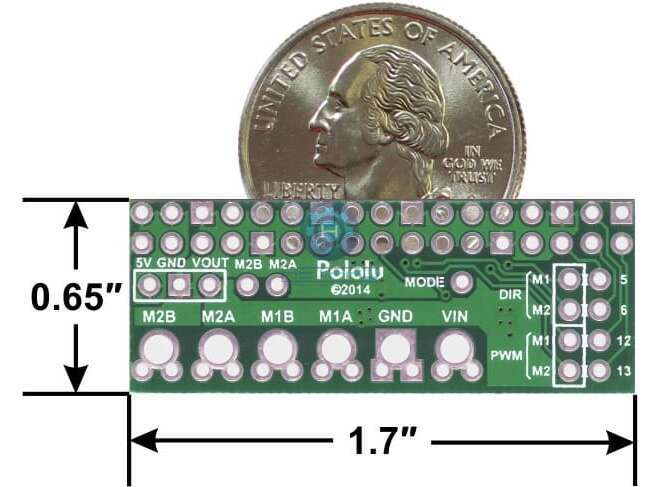

  • Dimensiones: 43.18x16.51 mm.
  • Peso: 2.3g.
  • Marca: Pololu
  • Cantidad: 1 pieza.

ENLACES DE INTERES

MAS INFORMACIÓN

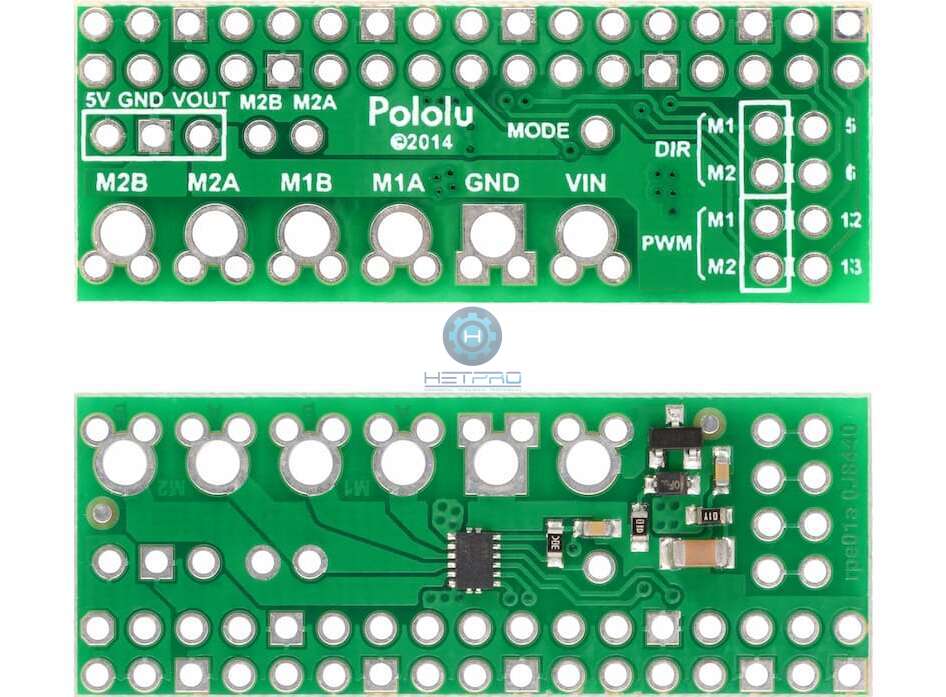

This compact expansion board plugs directly into the GPIO header on a Raspberry Pi B+, Pi A+, Pi 2, or Pi 3 and provides an easy and low-cost solution for driving a pair of small brushed DC motors. Its integrated DRV8835 dual motor driver allows it to operate from 1.5 V to 11 V, making it a great control option for low-voltage motors. The board can deliver a continuous 1.2 A (1.5 A peak) per motor, or a continuous 2.4 A (3 A peak) to a single motor when configured with both channels connected in parallel.

The board uses GPIO pins 5, 6, 12, and 13 to control the motor driver, making use of the Raspberry Pi’s hardware PWM outputs, although the pin mappings can be customized if the defaults are not convenient. Note that it is designed specifically for newer versions of the Raspberry Pi with 40-pin GPIO headers, including the Model B+, Model A+, Raspberry Pi 2 Model B and Raspberry Pi 3 Model B; it is not practical to use this expansion board with the original Raspberry Pi Model A or Model B due to differences in their pinout and form factor.
