Clicker V2 para STM32

Mover el mouse sobre la imagen para agrandar

$1,323.00
Precio con puntos: 1588 puntos
Puntos de recompensa: 66 puntos
2 Artículo(s)
Descuentos de mayoreo:
Cantidad 5+ 10+
Precio $995.00 $995.00
+
MKST1685-0-GA41

Clicker V2 para STM32



Clicker V2 para STM32 es un kit de desarrollo increíblemente compacto que lleva conectores mikroBUS al microcontrolador. Conecta la placa deseada para mejorar con más características impresionantes. Ofrece todo lo que necesita para empezar: microcontrolador STM32F407VGT6, conector USB, conector JTAG, dos LED y botones, puede ser alimentado mediante el cable USB y los headers para la interconexión con electrónica externa.



ESPECIFICACIONES

  • Integrado con STM32F407VGT6.
  • Conector USB mini-B.
  • Conector JTAG.
  • Headers para conexion.
  • Conector mikroBUS.
  • Cristal oscilador (25Mhz).
  • LEDs indicadores.


CARACTERISTICAS

  • Dimensiones: 81.15x60.45 mm.
  • Marca: MikroElektronika.
  • Cantidad: 1 pieza.


ENLACES DE INTERES



COMPATIBILIDAD

Tarjeta ideal para desarrollo de aplicaciones con un STM32F407VGT6 integrado y con distintas funciones.



MAS INFORMACIÓN



With two mikroBUS™ sockets on clicker 2, you can take advantage of the huge potential of click™ boards, the constantly expanding range of over 207 add-on boards. Blend different functionalities together and come up with new and original inventions. That’s just two clicks and your project is half-way done. Go ahead and play with a few ideas right away:

 Processing Your Imagination

clicker 2 is powered by an STM32F407VGT6, a 32-bit ARM® Cortex®-M4 MCU that operates at up to 168MHz, has 1MB of flash and 192+4KB of SRAM.

Having two mikroBUS™ sockets and an additional connection pad, clicker 2 for STM32 utilizes all of the STM32F407VGT6’s I/Os. Each mikroBUS™ socket has its own SPI, UART and I2C lines; the 1x26 connection pads on the edges of the board share SPI and UART lines with the second mikroBUS™ socket.

Hardware Debugging

Efficiently erradicate any bugs and iron out your code until it’s wrinkle free and your clicker 2 device works perfectly—use mikroProg™ for STM32®. It’s a fast hardware debugger and programmer with outstanding performance. Especially when used together with our ARM® compilers.

Debugger

HID Bootloader Inside

To make your prototyping experience as convenient as possible, clicker 2 for STM32 is preprogrammed with a USB-HID bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware.

Bootloader

Hardware Debugging

Efficiently erradicate any bugs and iron out your code until it’s wrinkle free and your clicker 2 device works perfectly—use mikroProg™ for STM32®. It’s a fast hardware debugger and programmer with outstanding performance. Especially when used together with our ARM® compilers.

Debugger

HID Bootloader Inside

To make your prototyping experience as convenient as possible, clicker 2 for STM32 is preprogrammed with a USB-HID bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware.

Bootloader


Tech specs

Pushbuttons, signal LEDs, jumpers, pads for connecting an external ON/OFF switch, here are all the bits and details at your disposal:

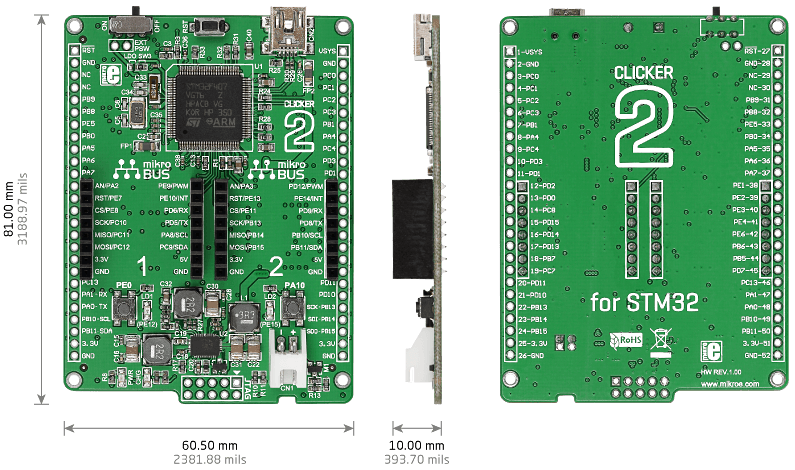

Dimensions
